General
Brand
Mercusys
Model
Mercusys AC10
Router Type
Wireless & Ethernet
Hardware
Data Transfer Rate (Wifi)
1200 Mbps
WiFi Network Standards
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
LAN Network Standard
10/100
WAN Network Standard
10/100
Data Transfer Rate (Lan)
100 Mbps

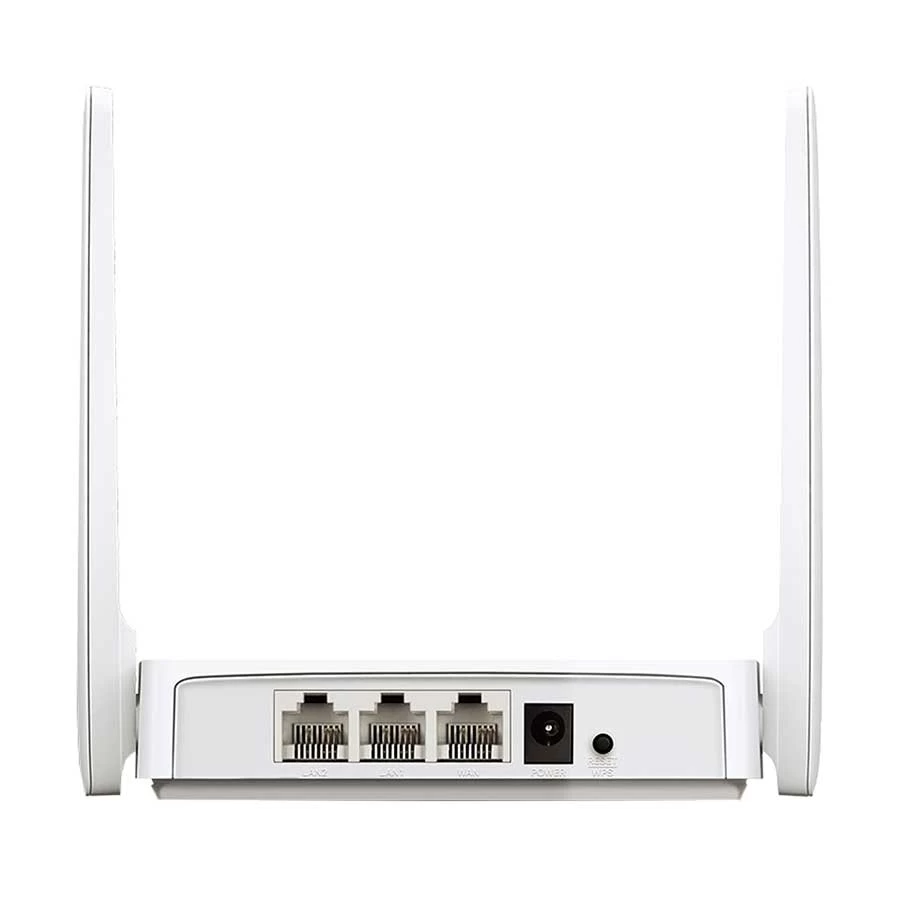

Interface
Interface(s)
1 x 10/100 RJ45 WAN, 2 x 10/100 RJ45 LAN
Number of WAN Port
1
Number of LAN Port
2
USB Interface
No
USB Interface Application
No
Internet Connectivity
WAN Only
SIM Card Slot Included
No
Sim Card Slot
No
Wireless
Antenna (Type & Qty)
4 x 5 dBi External Fixed Omni-Directional Antennas
WAN Type
Dynamic IP, Static IP, PPPoE, L2TP, PPTP
Wi-Fi Generation
Wi-Fi 5
Band
Dual
Wi-Fi Coverage (Approximate)
Up to 1500 sq. ft.
Number of Concurrent User
Up to 15 User connections
Performance
3G/4G
No
Mesh Technology
No
MIMO Technology
Yes
Security
Operating Frequency
2.4 GHz, 5 GHz
Operation/Working Wireless Modes
Router, Range Extender, Access Point
Security Protocols
WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal (Wireless Security)
Firewall Protocols
SPI Firewall, IP and MAC Address Binding
VPN Support
No
Voice Assistant
No
Built in Antivirus
No
Print Compatible
No
Electrical
Power
9V – 0.85A
Operating Temperature
0 degree C – 40 degree C
Operating Humidity
10% – 90% non-condensing
Storing/Storage Humidity
5% – 90% non-condensing
Physical Description
Button
Reset/WPS Button
Dimensions
114 x 94 x 26mm
Color
White
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Feature
4 High-Gain External Antennas – Receive strong Wi-Fi signals in every corner of your home. Easy Installation – Set up in minutes guided by an intuitive web UI. Multi-Mode – Access Point Mode, Range Extender Mode, and Router Mode supported to satisfy all application scenarios.
Specialty
High-Speed Wi-Fi – Stream with fast and stable connections, reaching speeds up to 1167 Mbps (300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band). Active Parental Controls – Protect your family by setting appropriate access policies for responsible, safe internet use.
Others
WiFi Speeds: Up to 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz. Transmission Power: 2.4 GHz < 20dBm (EIRP), 5 GHz < 23dBm (EIRP). Wireless Functions: Enable/Disable Wireless Radio, WMM. Operation Modes: Router Mode, Access Point Mode, WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP. Management: Access Control, Local Management, Remote Management. DHCP: Server, DHCP Client List. NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ. Firewall Security: SPI Firewall, IP and MAC Address Binding. Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network. External Power Supply: 9V/0.85A.
Country Of Origin
China
Made in/ Assemble
China
