General
Brand
TP-Link

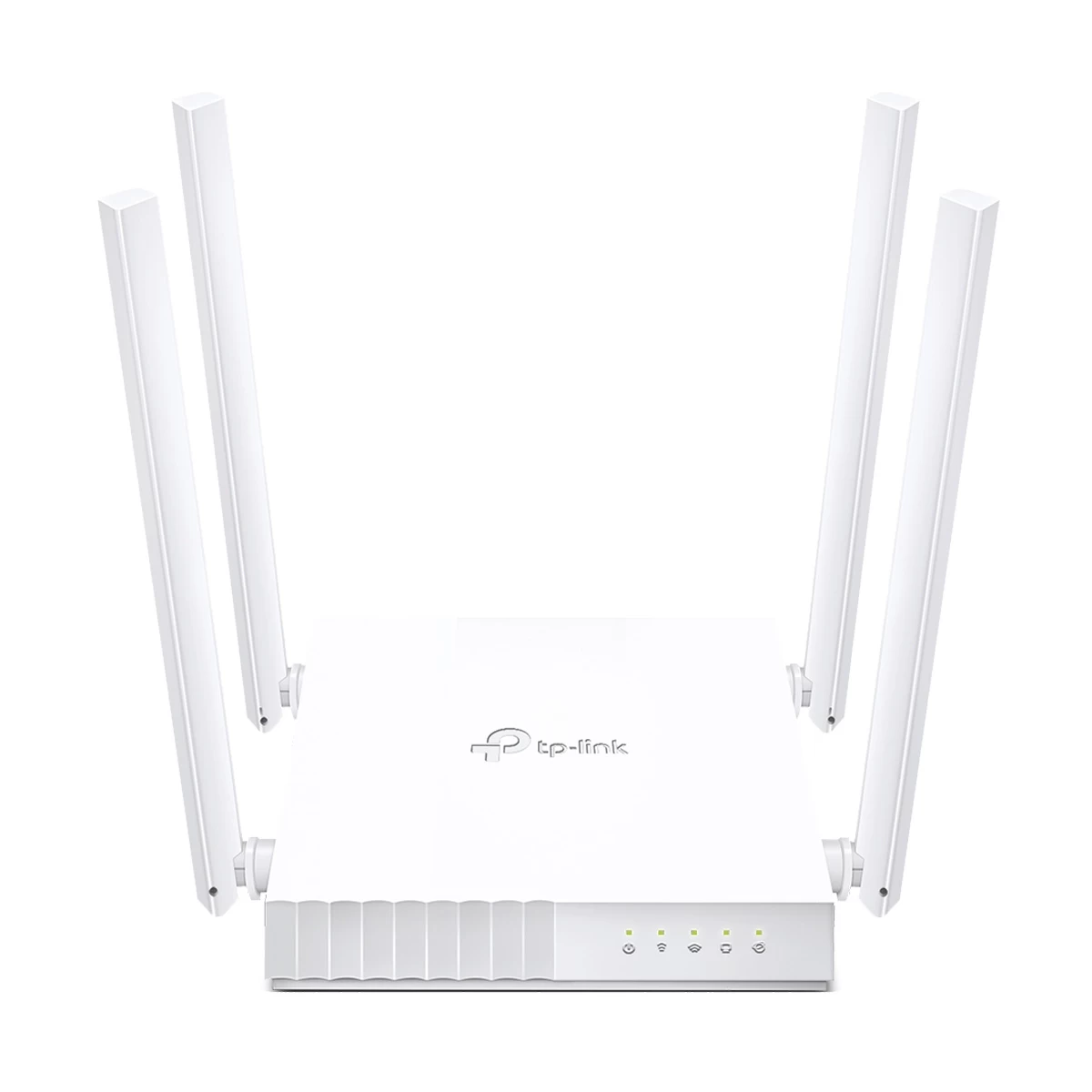

Model
TP-Link Archer C24
Router Type
Wireless & Ethernet
Hardware
Data Transfer Rate (Wifi)
750 Mbps
WiFi Network Standards
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
LAN Network Standard
10/100
WAN Network Standard
10/100
Data Transfer Rate (Lan)
100 Mbps
CPU
Single-Core CPU
Interface
Interface(s)
1 x 10/100 RJ45 WAN, 4 x 10/100 RJ45 LAN
Number of WAN Port
1
Number of LAN Port
4
USB Interface
No
USB Interface Application
No
Internet Connectivity
WAN Only
SIM Card Slot Included
No
Sim Card Slot
No
Wireless
Antenna (Type & Qty)
4 x External Antenna
WAN Type
Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Wi-Fi Generation
Wi-Fi 5
Band
Dual
Wi-Fi Coverage (Approximate)
Up to 1200 sq. ft.
Number of Concurrent User
Up to 20 User connections
Performance
3G/4G
No
Mesh Technology
No
MIMO Technology
No
Security
Operating Frequency
2.4 GHz, 5 GHz
Operation/Working Wireless Modes
Router, Access Point, Range Extender (Repeater)
Security Protocols
WEP / WPA / WPA2 / WPA / WPA2-Enterprise
Firewall Protocols
DoS, SPI Firewall, IP Address Filtering/MAC Address Filtering/Domain Filtering, IP and MAC Address Binding
OS Compatibility
Windows / Mac / Linux / Android
VPN Support
No
Voice Assistant
No
Built in Antivirus
No
Electrical
Power
9V – 0.6A
Operating Temperature
0 Degree C – 40 Degree C
Storing/Storage Temperature
-40 Degree C – 60 Degree C
Operating Humidity
10% – 90% Non-Condensing
Storing/Storage Humidity
5% – 90% Non-Condensing
Physical Description
Wall Mountable
Yes
Button
WPS/Reset
LED Indicators
Yes
Dimensions
115 x 106 x 24mm
Color
White
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Feature
High-Speed Wi-Fi – AC750 dual-band is ideal for HD video streaming, high-speed downloading. Far-Reaching Coverage – 4 antennas deliver far-reaching Wi-Fi and reliable connections. Multi-Mode 3 in 1 – Supports Router, Access Point, and Range Extender to add flexibilities. Parental Controls – Manages when and how connected devices can access the internet. Guest Network – Provides separate access for guests while securing the host network. Smooth HD Streaming – Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming. IPv6 Supported – Compatible with the IPv6 (the latest Internet Protocol version 6). Compact and Mountable – Designed to conserve space and complement any decor.
Specialty
16 connected Wi-Fi devices continuously streaming for 7 days without dropping WiFi.
Others
Power: 9 V = 0.6 A, Guest Network: 1 x 5 GHz Guest Network, 1 x 2.4 GHz Guest Network, System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem, Certifications: FCC, CE, RoHS
Certifications
FCC, CE, RoHS
Country Of Origin
China
Made in/ Assemble
China
