General
Brand
TP-Link
Model

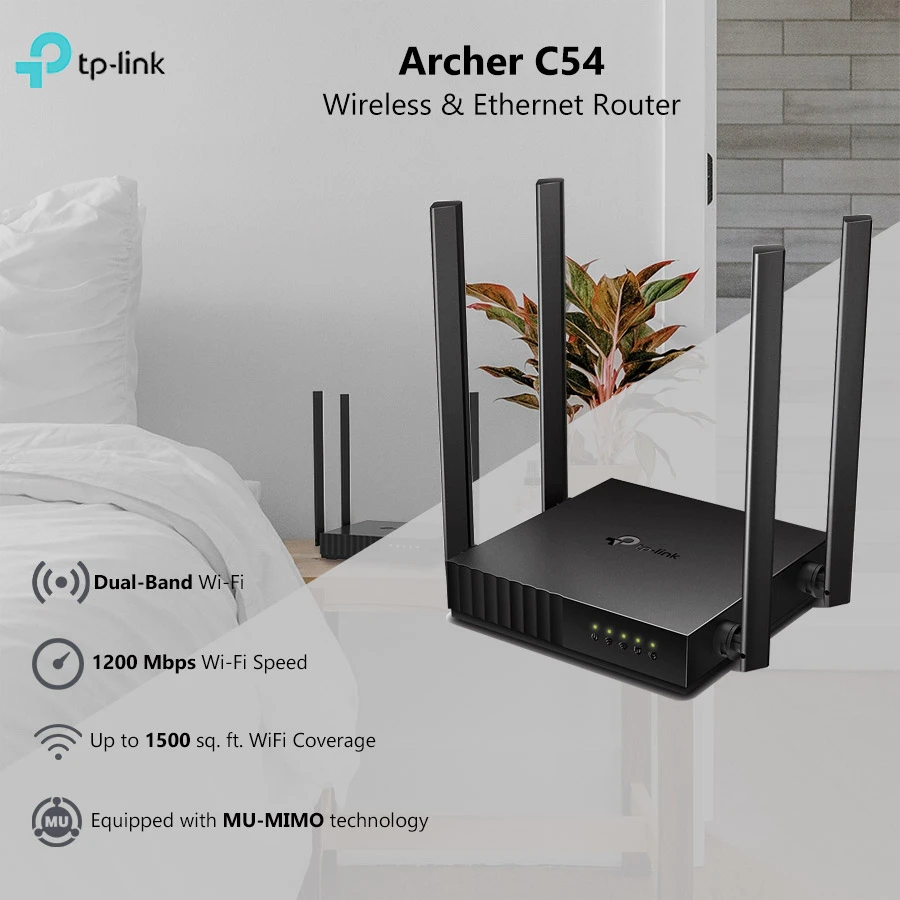

TP-Link Archer C54
Router Type
Wireless & Ethernet
Hardware
Data Transfer Rate (Wifi)
1200 Mbps
WiFi Network Standards
802.11a, b, g, n, ac
LAN Network Standard
10/100
WAN Network Standard
10/100
Data Transfer Rate (Lan)
100 Mbps
CPU
Single-Core CPU
Interface
Interface(s)
1 x 10/100 RJ45 WAN, 4 x 10/100 RJ45 LAN
Number of WAN Port
1
Number of LAN Port
4
USB Interface
No
USB Interface Application
No
Internet Connectivity
WAN Only
SIM Card Slot Included
No
Sim Card Slot
No
Wireless
Antenna (Type & Qty)
4 x Fixed Antennas
WAN Type
Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Wi-Fi Generation
Wi-Fi 5
Band
Dual
Wi-Fi Coverage (Approximate)
Up to 1500 sq. ft.
Number of Concurrent User
Up to 20 User connections
Performance
3G/4G
No
Mesh Technology
No
MIMO Technology
Yes
Security
Operating Frequency
2.4 GHz, 5 GHz
Operation/Working Wireless Modes
Router, Access Point, Range Extender (Repeater)
Security Protocols
WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
Firewall Protocols
SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
OS Compatibility
Windows / Mac / Linux / Android
VPN Support
No
Voice Assistant
No
Built in Antivirus
No
Electrical
Power
9V – 0.85A
Operating Temperature
0 Degree – 40 Degree C
Storing/Storage Temperature
-40 degree – 60 degree C
Operating Humidity
10% – 90% Non-Condensing
Storing/Storage Humidity
5% – 90% Non-Condensing
Physical Description
Button
WPS/Reset Button
LED Indicators
Yes
Dimensions
115 x 106.7 x 24.3 mm
Color
Black
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Feature
4 external antennas provide stable wireless connections and optimal coverage, Easy network management at your fingertips with TP-Link TetherMU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once, Beamforming technology delivers a highly efficient wireless connection
Specialty
Faster AC Wi-Fi – AC1200 dual-band is ideal for 4K video streaming and high-speed downloading. Far-Reaching Coverage – 4 x antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections. Multi-Mode 3-in-1 – Supports Router, Access Point, and Range Extender modes for added flexibility. Parental Controls – Manages when and how connected devices can access the internet. Guest Network – Provides separate access for guests in order to secure the host network. Smooth HD Streaming – Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming. IPv6 Supported – Compatible with the IPv6 (the latest Internet Protocol version 6). Compact and Mountable – Designed to conserve space and complement any decor.
Others
5dBi antenna, Power: 9 V = 0.85 A, Working Modes: Router Mode, Access Point Mode, Range Extender Mode, Guest Network: 1 x 5 GHz Guest Network, 1 x 2.4 GHz Guest Network, Protocols: IPv4, IPv6, Operating Temperature: 0 degree C – 40 degree C, Storage Temperature: -40 degree C – 60 degree C, Operating Humidity: 10% – 90% non-condensing, Storage Humidity: 5% – 90% non-condensing, Certifications: FCC, CE, RoHS, Package Contents: Wi-Fi Router Archer C54, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide.
Certifications
FCC, CE, RoHS
Country Of Origin
China
Made in/ Assemble
China
