General
Brand
TP-Link
Model

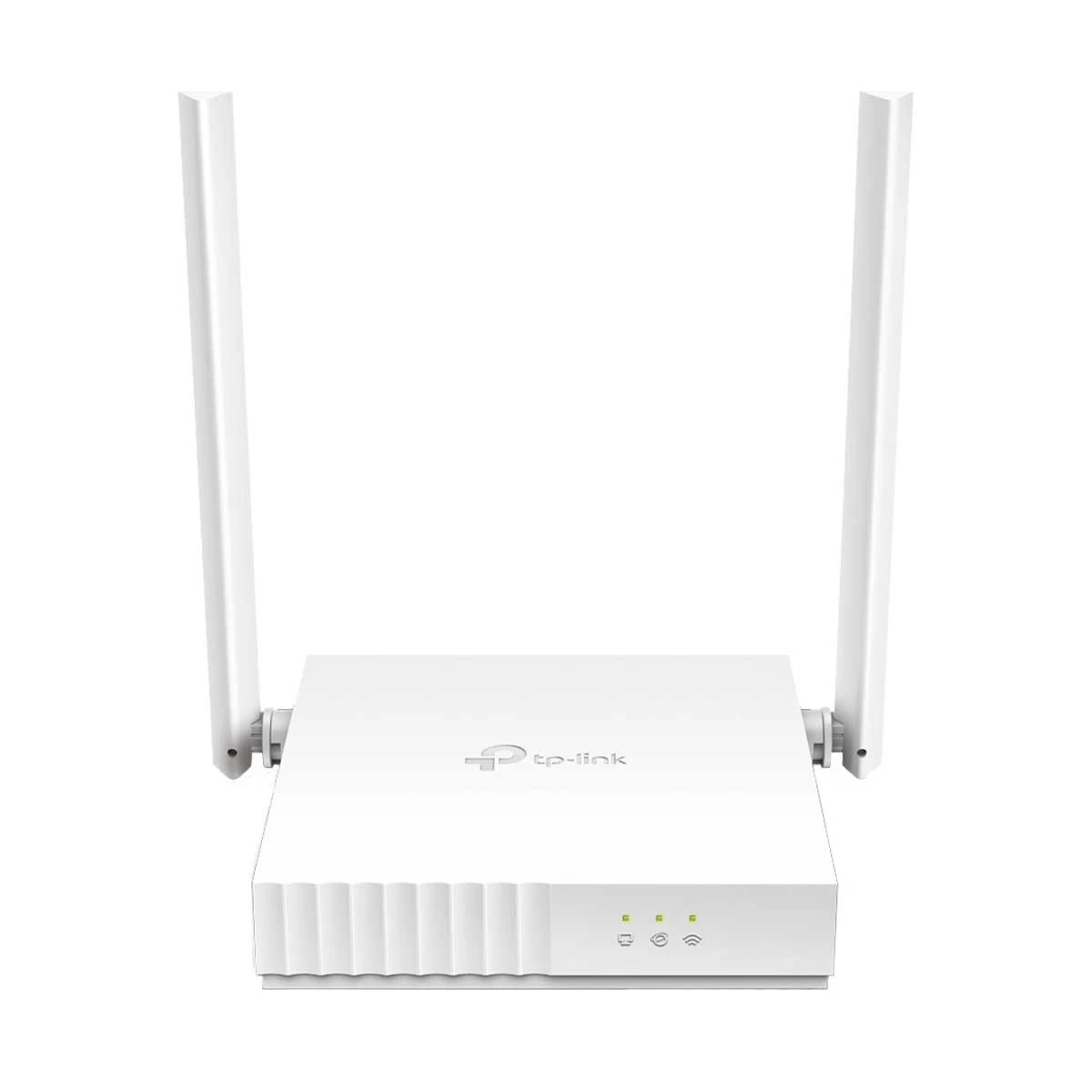

TP-Link TL-WR820N
Router Type
Wireless & Ethernet
Part No
TL-WR820N
Hardware
Data Transfer Rate (Wifi)
300 Mbps
WiFi Network Standards
IEEE 802.11b,g,n
LAN Network Standard
10/100
WAN Network Standard
10/100
Data Transfer Rate (Lan)
100 Mbps
CPU
Single-Core CPU
Interface
Interface(s)
1 x 10/100 RJ45 WAN, 2 x 10/100 RJ45 LAN
Number of WAN Port
1
Number of LAN Port
2
USB Interface
No
USB Interface Application
No
Internet Connectivity
WAN Only
SIM Card Slot Included
No
Sim Card Slot
No
Wireless
Antenna (Type & Qty)
2 x 5dBi External Antena
WAN Type
Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Wi-Fi Generation
Wi-Fi 4
Band
Single
Wi-Fi Coverage (Approximate)
Up to 800 sq. ft.
Number of Concurrent User
Up to 10 User Connections
Performance
3G/4G
No
Mesh Technology
No
MIMO Technology
Yes
Security
Operating Frequency
2.4 GHz
Operation/Working Wireless Modes
Router, Access Point, Range Extender (Repeater), WISP
Security Protocols
WEP, WPA / WPA2, WPA / WPA2-PSK
Firewall Protocols
SPI Firewall, IP and MAC Address Binding
OS Compatibility
Windows 7, 8, 8.1, 10, Vista, XP, 2000, NT, 98SE, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
VPN Support
No
Voice Assistant
No
Built in Antivirus
No
Electrical
Power
5V – 0.6A
Operating Temperature
0 degree C – 40 degree C
Storing/Storage Temperature
-40 degree C – 70 degree C
Operating Humidity
10% – 90% non-condensing
Storing/Storage Humidity
5% – 90% non-condensing
Physical Description
Wall Mountable
Yes
Button
WPS/Reset
LED Indicators
Yes
Dimensions
115 x 106.7 x 24.3 mm
Color
White
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Feature
300 Mbps Wi-Fi speed is ideal for daily tasks including browsing, emailing, and video streaming, IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming, Guest Network provides separate access for guests while securing the host network, Parental Controls manage when and how connected devices can access the internet, SPI firewall and wireless encryption protect your home network, Compatible with IPv6 (Internet Protocol version 6)
Specialty
300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work, IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming, Compatible with IPv6 (Internet Protocol version 6), Guest Network provides separate access for guests while securing the host network, Parental Controls manage when and how connected devices can access the internet, Strong Signal, Great Coverage, EU Version 2.0
Others
Button: WPS/Reset Button, External Power Supply: 5VDC / 0.6A, Frequency: 2.412-2.472GHz, Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics, WAN Type: Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Management: Access Control, Local Management, Remote Management, DHCP: Server, DHCP Client List, Port Forwarding: Virtual Server, UPnP, DMZ, Dynamic DNS: DynDns, NO-IP, Access Control: Parental Controls, Local Management Control, Host list, Access Schedule, Rule Management, Protocols: IPv4, IPv6, OS Supported: Windows 7, 8, 8.1, 10, Vista, Xp, 2000, NT, 98SE, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Certifications
FCC, CE, RoHS
Country Of Origin
China
Made in/ Assemble
China
