General
Brand
Zebra
Model

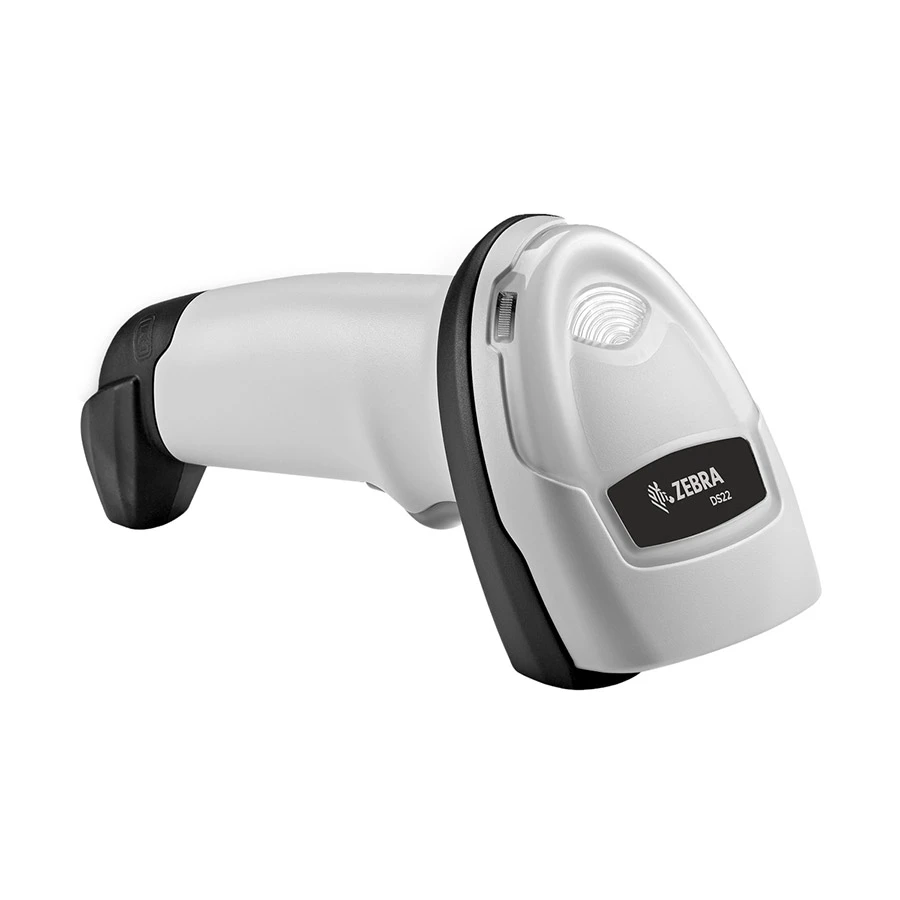

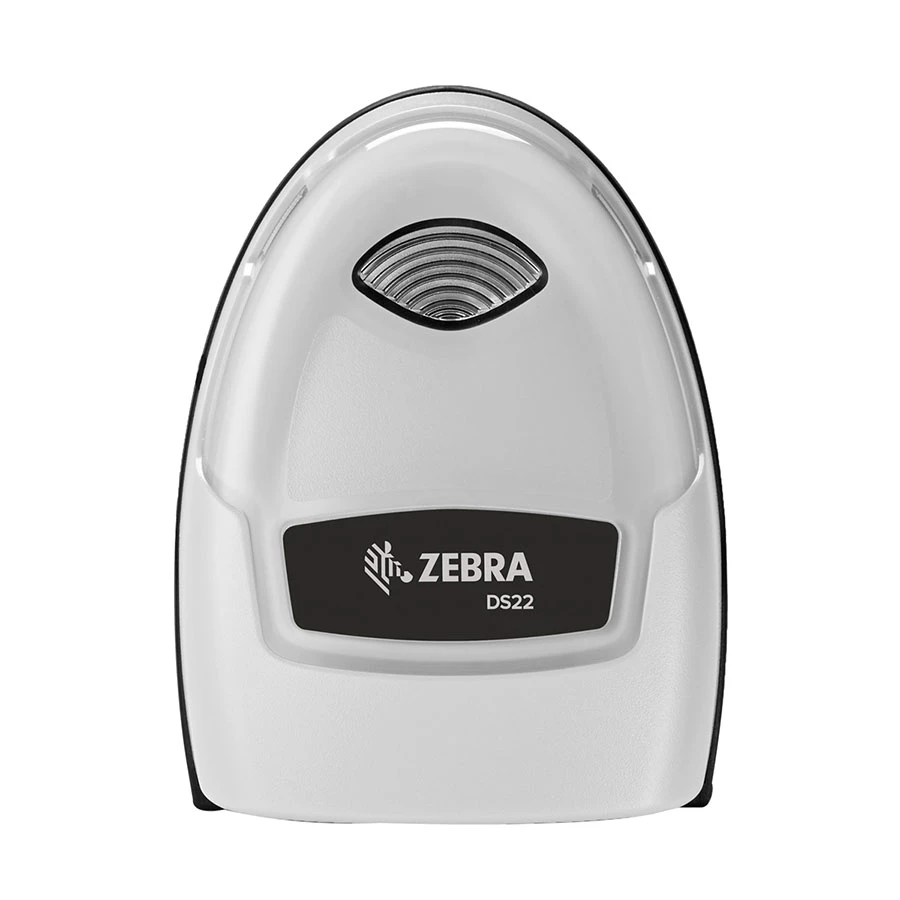

Zebra DS2278
Scanner Type
Barcode Scanner
Performance Characteristics
Light Source
Aiming Pattern: Linear 624nm Amber LED
Scan Angle
32.8 Degree (H), 24.8 Degree (V)
Scanning Speed
Unmentioned
Print Contrast
25% minimum reflective difference
Interface(s)
USB, RS-232, Bluetooth
Decode/Scanner Capability
1D and 2D symbologies
1D Barcode
Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D Barcode
PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes
Drop Tolerance
5.0 ft.
Technical Info
Connectivity Mode
Cordless
Optical System
640 x 480 pixels
Depth of Field
Code 39 – 4.0 mil, Code 128 – 4.0 mil, Data Matrix – 6.0 mil, QR Code – 6.7 mil
Sealing
IP52
Supported Operating System
Windows, Android, iOS and Linux.
Suitable for
Retail Stores, Supermarkets, Restaurant, Pharmacy, Assembly Line Etc.
Physical Description
Indicators
Direct Decode Indicator, good decode LEDs, Rear view LEDs, beeper (adjustable tone and volume)
Cable
No
Stand
No
Form Factor
Gun Shape
Color
Nova White
Dimensions
175 x 66 x 90 mm
Weight (Kg)
214 gm
Power
Input Voltage
4.5 – 5.5 VDC
Battery.
2,400 mAh Li-Ion Battery
Operating Current
250 mA
Recharging Time
14 Hour (Shift Hours / Full Charge Hours)
Warranty
Warranty Details
1 year
Additional Info
Feature
Up to 30.0 in./76.2 cm. per second for 13 mil UPC Swipe Speed (Hands-Free), Fast, easy and flexible charging, Unique direct decode indicator improves productivity
Others
Keyboard Support: Supports more than 90 international keyboards, Operating Temperature: 0 degree C – 50 degree C, Storage Temperature: -40 degree C – 70 degree C, Humidity: 5% – 95% RH, non-condensing, Illumination: 645nm Super-Red LEDs, Imager Field of View: 32.8 degree x 24.8 degree Nominal, Image Sensor: 640 x 480 pixels, Motion Tolerance (Handheld): Up to 5 in./13 cm. per second for 13 mil UPC, Swipe Speed (Hands-Free): Up to 30.0 in./76.2 cm. per second for 13 mil UPC
Specialty
Scans Per Battery Charge: 110,000 scans at 60 Scans per Minute or 50,000 scans at 10 Scans per Minute, Ambient Light Immunity: 0 to 10,000 Foot Candles/0 to 107,600 Lux
Country Of Origin
USA
Made in/ Assemble
Mexico/Singapore/China/Vietnam (or Country may vary by Shipment)
